Tangle resistant
Rigid-core construction and a stiff braided cover help resist wrapping and self-coiling.

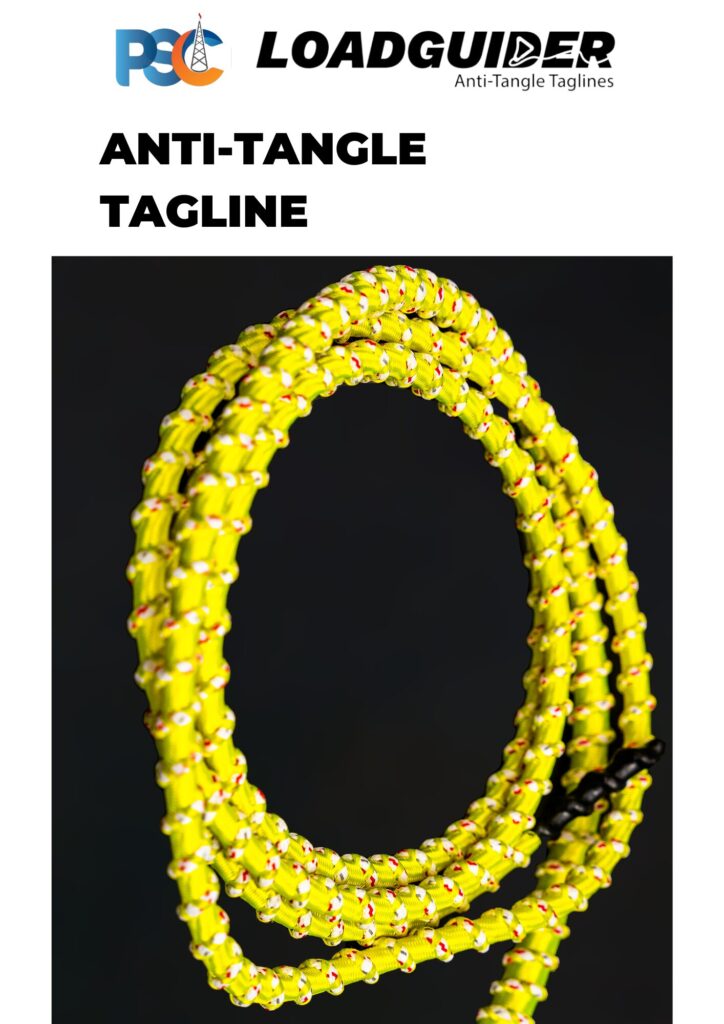

Rigid-core braided tagline

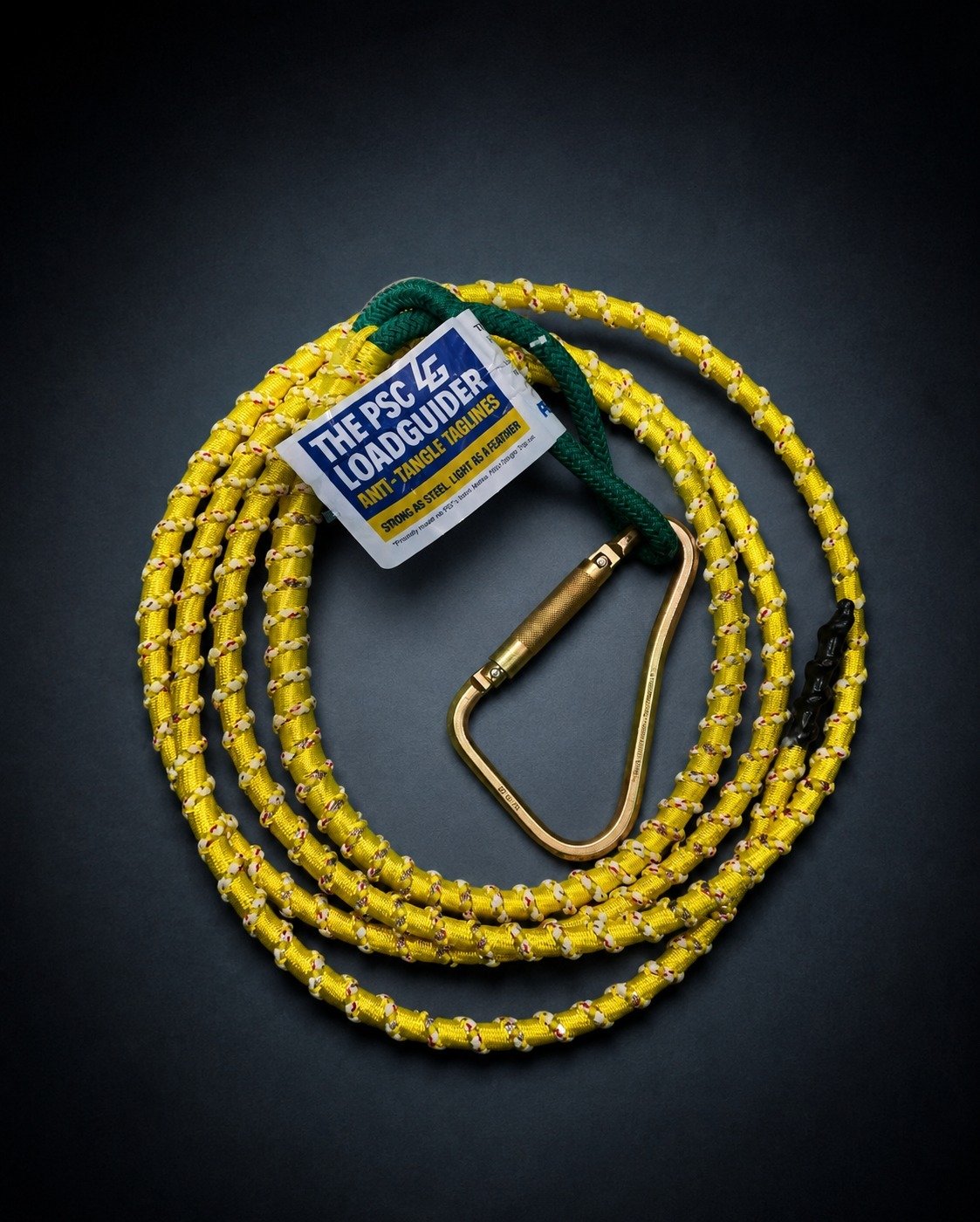

PSC LoadGuider® Anti-Tangle Tagline.
Suspended Load Control
A high-strength synthetic tagline engineered to resist tangling, protect the load-control line from abrasion and provide positive handling in demanding lifting environments.
Diameter18 mm construction
CoreSK75 synthetic fibre
Lengths10–45 feet
IdentificationColour-coded eyes
Why LoadGuider
Anti-Tangle Tagline: Strong Line. Controlled Behaviour.
The braided construction is designed to reduce the wrapping, coiling and snagging problems associated with conventional ropes.
The 18 mm system combines a 12 mm SK75 synthetic rope with a 6 mm core. A woven outer sheath provides abrasion protection, while the helix profile supports grip in wet conditions. The line is washable and offered with colour-coded eyes for length identification.
Anti-Tangle Tagline Features
Built for repeated handling.
Every characteristic is intended to help the line remain identifiable, manageable and suitable for industrial load-control work.
Abrasion protected
The woven outer sheath protects the load-bearing line against friction and wear.
High visibility
Bright yellow construction improves line visibility around the lift.
Length identification
Colour-coded eyes help operators distinguish available line lengths.
Washable
The dirt-resistant line and outer cover can be washed for continued use.
Optional connector

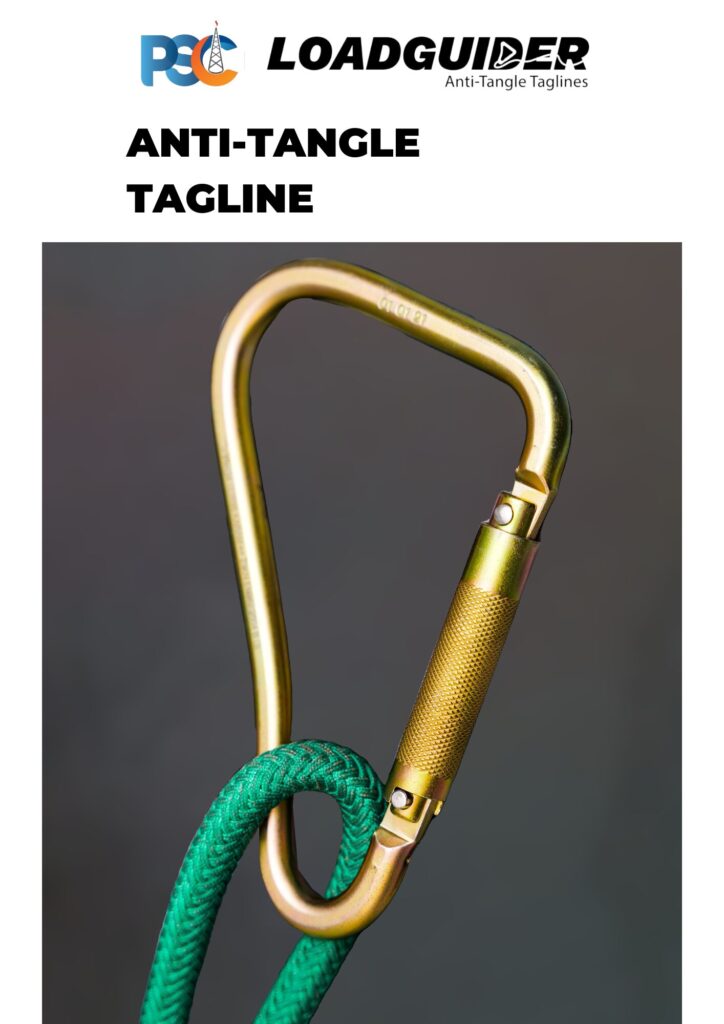

A 50 mm gate-opening twist-lock carabiner is available for use with the tagline.
Available lengths
Specify the working distance.
Select length around the load, lift path, operator position and site lifting procedure. PSC can review the operation before quotation.
10 ftPSC-LGTC-10
15 ftPSC-LGTC-15
20 ftPSC-LGTC-20
25 ftPSC-LGTC-25
30 ftPSC-LGTC-30
35 ftPSC-LGTC-35
40 ftPSC-LGTC-40
45 ftPSC-LGTC-45
Control applications
Anti-Tangle Tagline for Suspended Load Guidance

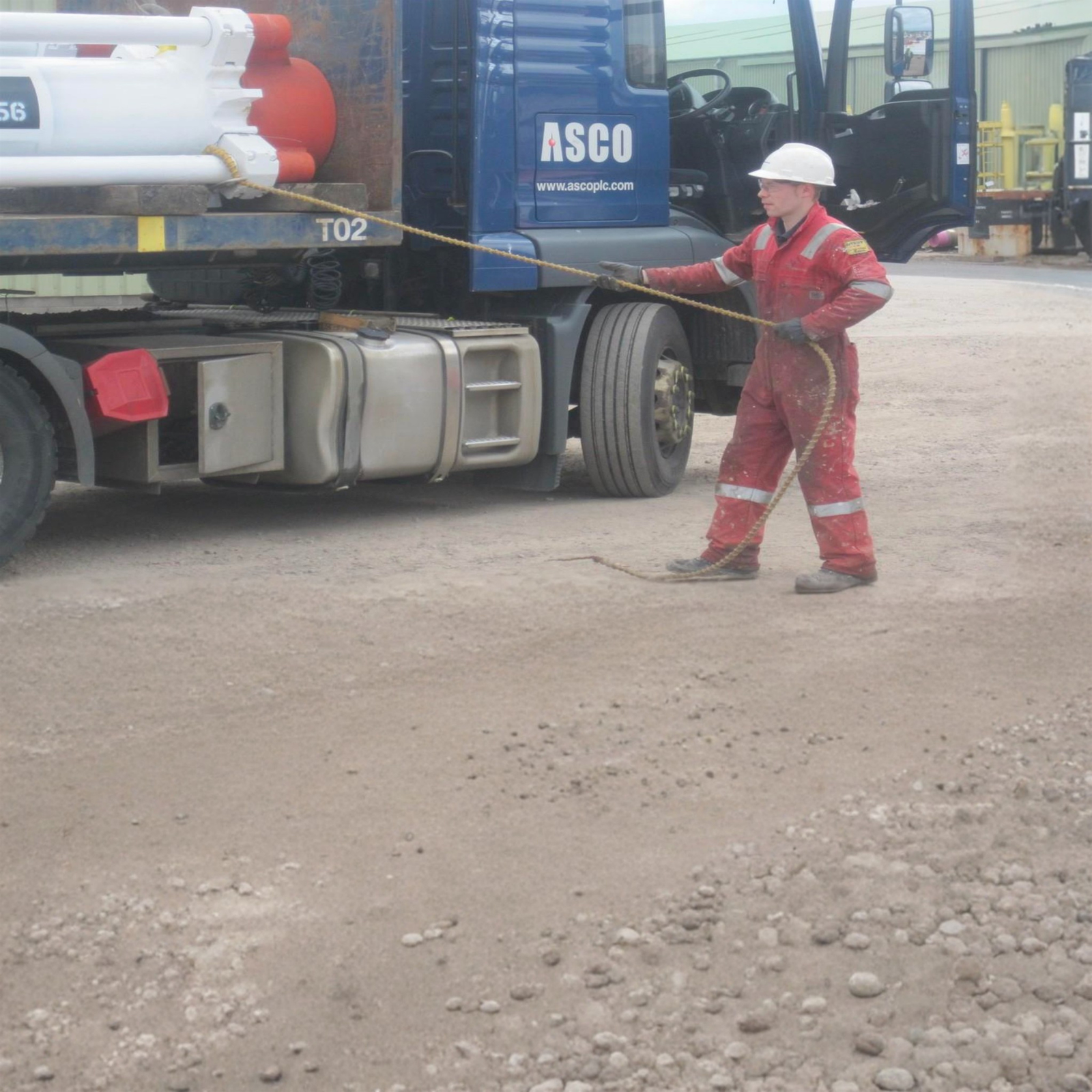

LoadGuider supports control of load swing, rotation and orientation while helping workers remain clear of the suspended load.
Wind-affected loads
Maintain influence over a load exposed to wind or crane movement.
Positioning tasks
Help present the load in the required direction during landing and alignment.
Hands-off control
Guide the load without placing hands directly on its surface.
Related tagline systems
Compare before you specify.
PSC offers alternative constructions where visibility, shape retention or a swivel-hook connection is the primary need.
Select by operation
Show us the lift.
Send the load, movement, rigging arrangement and working environment. PSC will help confirm construction and line length.
Request selection support →
